Enhance Industrial Laundry
with Innovative & Intelligent
Dispensing Systems
Scale up and streamline processes in large-scale laundries with
our IoT Multiplex dispensing systems. Optimize your operation
with real-time reporting and digital libraries.
Multiplex, Our Intelligent Large-Scale
Laundry Dispensing System
An ideal solution for operations of any size. Choose from our selection of our four versatile models,
capable of handling up to 12 washing machines, up to 10 chemicals and a maximum daily production of
1,100 to 8,000 lbs. Offering real-time data and digital services to easily monitor consumption,
usage, and cost reports with organized and clear interfaces.

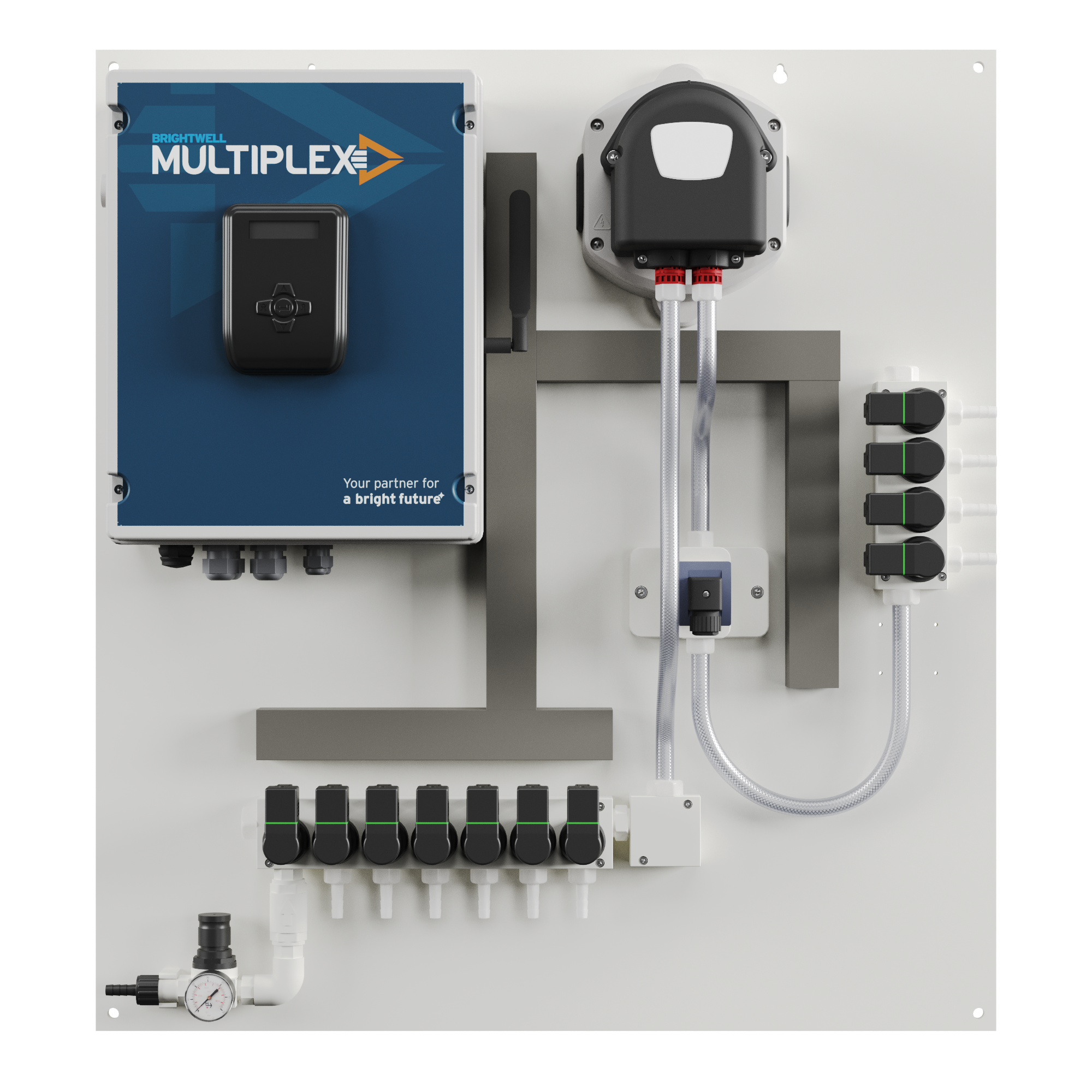

Multiplex 1
Perfect for commercial laundry operations, this unit handles up to 5 washing machines and dispenses up to 8 chemicals. It boasts a daily production capacity of up to 2,200 lbs with a pump flow of 51 fl oz per minute and an integrated distribution manifold.
Optional accessories: pressure regulator and/or paddle wheel

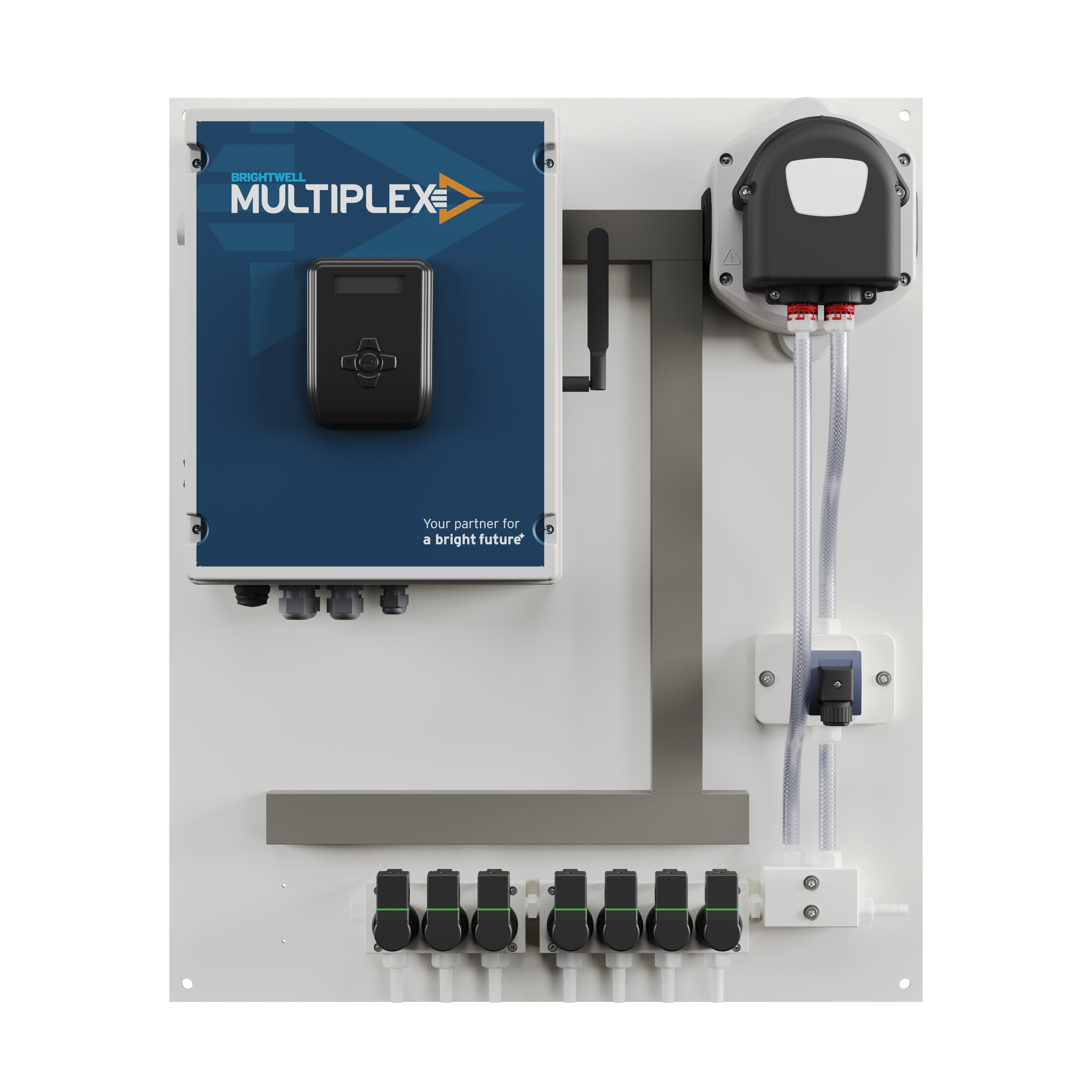

Multiplex 1 Pro
Ideal for medium-sized industrial laundry applications, this model features additional functionalities like flow meter control and compatibility with extra channels. It handles up to 10 washing machines, dispenses up to 8 chemicals, and has a daily production capacity of up to 4,000 lbs. Users can choose between an electric or pneumatic pump, with a flow rate of 85.5 fl oz per minute. In addition, an external distribution manifold and pressure regulator are included.
Optional accessories: Oval gear

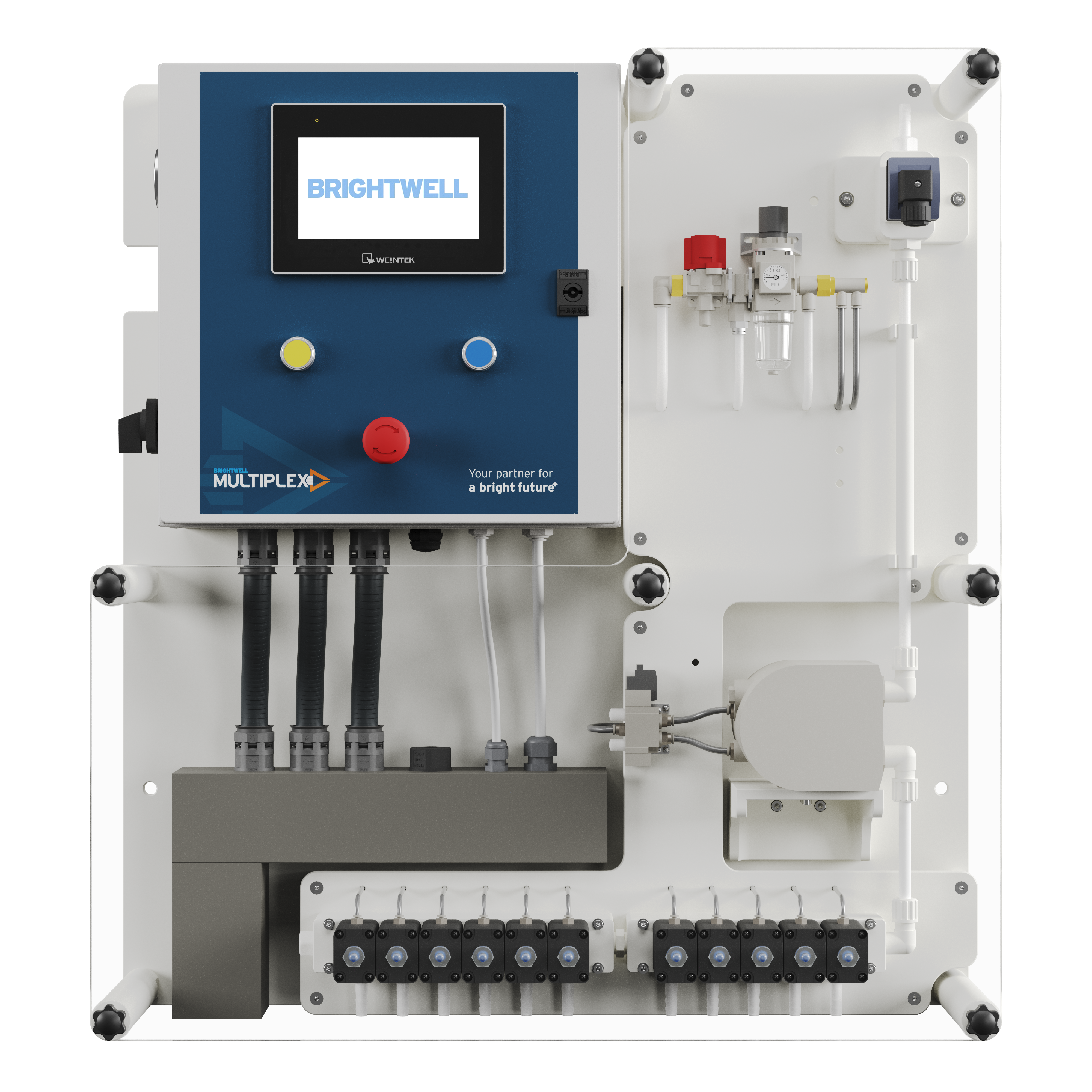

Multiplex 2 Pro

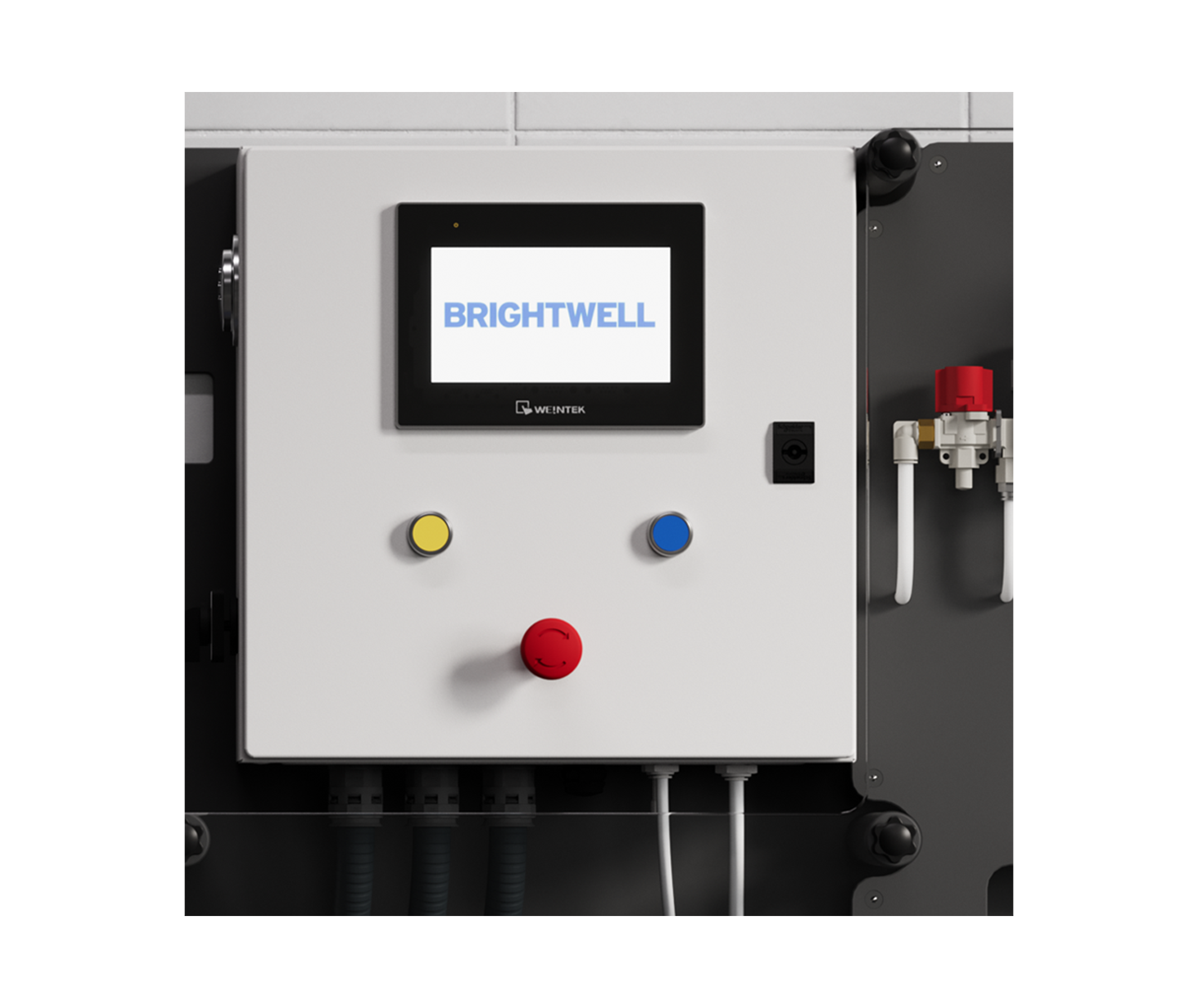

The top-of-the-line choice for large industrial laundry operations, this model features an onboard touch screen, flow meter control, and compatibility with additional channels. It handles up to 12 washing machines, dispenses up to 10 chemicals, and boasts a daily production capacity of up to 8,800 lbs. Users can choose between an electric or pneumatic pump with flow rates of either 84.5 fl oz or 169 fl oz, depending on the order. The unit also comes with an external distribution manifold.
Optional accessories: Oval gear
Comparison Matrix
To help you select the best option for your needs, the table offers a clear summary
of the multiplex range options, configurations, and key specifications.
Costs Savings with Modularity
Intelligent Library and Digital Services
Reduced Maintenance and Downtime
Modularity
Optimize your setup by expanding with additional channels to the central unit, saving space and lowering investment costs.
Select from a variety of configurations accommodating up to 12 machines and offering a choice of up to 10 chemical options.
Multiplex, The Intelligent Large-Scale Dispensing System
Multiplex – Digital Services
Laundry management with superior digital services tailored
for high-volume chemical dispensing and comprehensive
digital features ensuring efficient operation and safety
across diverse industrial environments.
Reporting Features
Software Features & Benefits

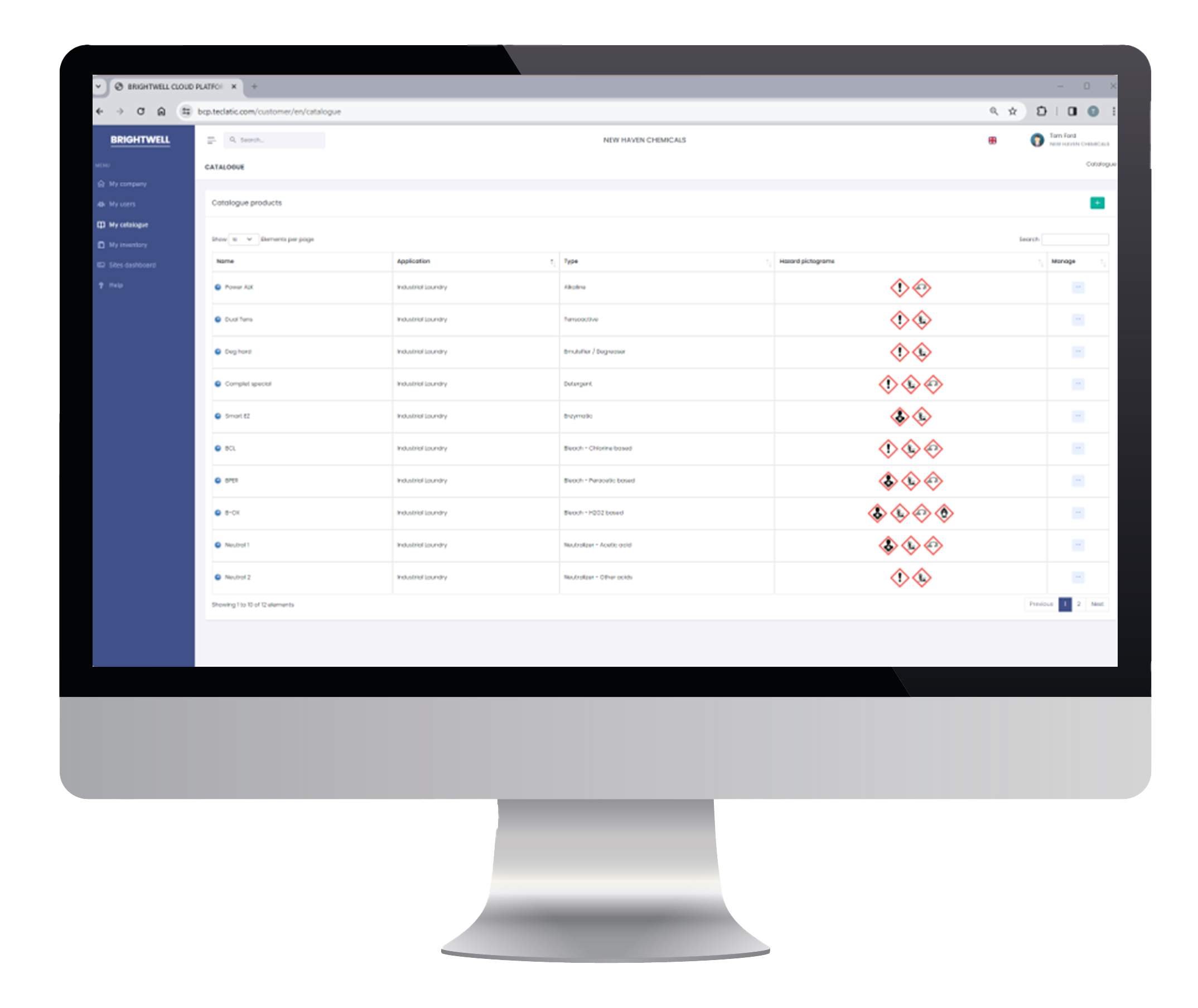

Advanced Product Catalog
Valuable Insights with Reporting Features
- Optimize Your Operations: Analyze Overall Equipment Effectiveness (OEE) with visual comparisons to identify areas for improvement.
- Drill Down for Details: Conduct program and washer analysis, and review daily program reports to identify efficiency gains.
- Troubleshoot With Ease: Leverage breakdown views for swift troubleshooting and problem resolution.
- Maintain Control: View machine dosage programs and track dosage usage directly on-screen.
Accessories
Booster tank
Designed to increase the efficiency and capacity of your dosing unit, the booster tank ensures a consistent and reliable supply of water. Its durable construction and easy integration make it a valuable upgrade for maintaining optimal dosing performance in high-volume laundry operations.

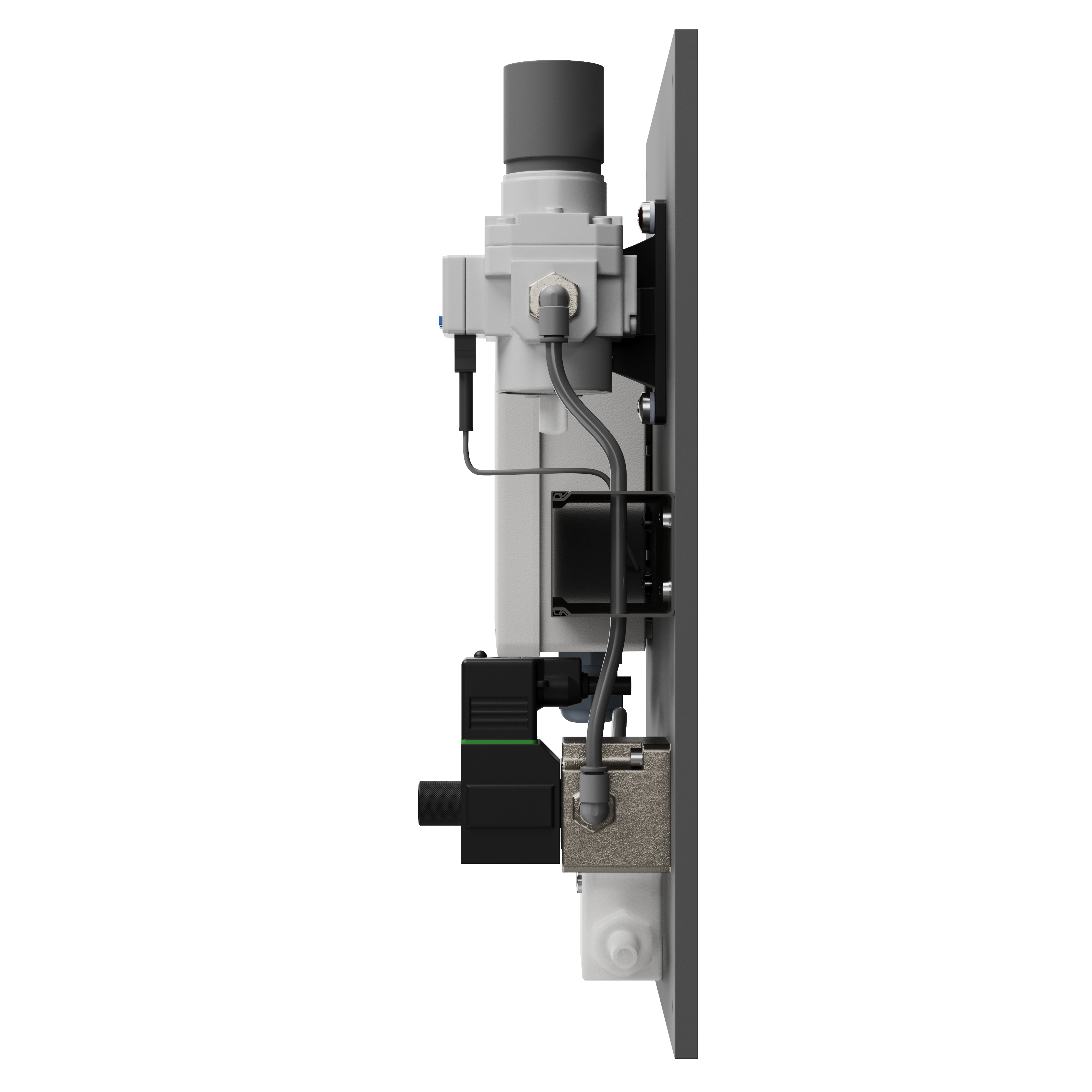

Air pressure box
The box regulates pressure used for air flushing and has been purpose designed for use within the laundry environment. Adding an air pressure box is a key tool for sites that require faster chemical delivery.

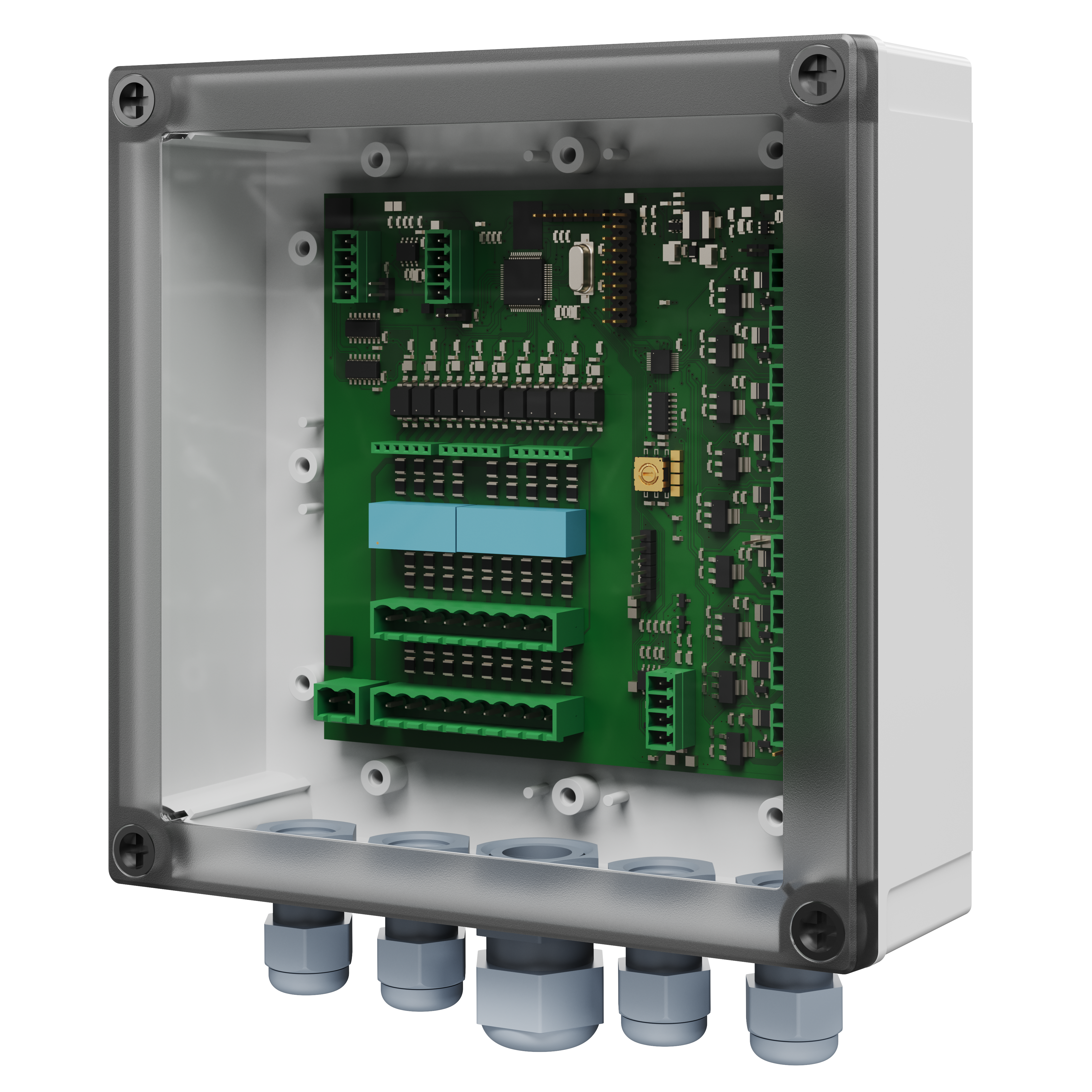

Signal box
It is required in a Multiplex install and enables important features like AFS (auto formula select) and machine pausing. It acts as a communication unit between the dosing unit and the washers, carrying important information like dosing triggers and wash program information.
Measuring vase
A measuring vase is a specialised container used to measure precise quantities of liquid chemicals. This tool is used to simplify the calibration process, calibration is a key process for ensuring safe, high quality wash results.
Pneumatic distributor
Our distributor ensures precise control of chemical in our Multiplex industrial laundry dosing systems, enabling accurate and efficient chemical dosing. Using compressed air to operate the valves are designed for durability and performance boosting the efficiency and reliability of your laundry operations, ensuring optimal cleaning performance
